High quality anti-corrosion and anti-aging flexible galvanized steel water tank assemble panel tank 50m3 water tank

1.0 Cubic Meters
MOQ
$130.00(1 - 49 Cubic Meters) $80.00(>=50 Cubic Meters)
가격
High quality anti-corrosion and anti-aging flexible galvanized steel water tank assemble panel tank 50m3 water tank
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Applicable Industries: Hotels, Building Material Shops, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pump
Material: Wooden Pallent, galvanized steel,Q235 steel
Weight: Depends on size of tank
Size: Customized
Warranty: 1 Year
Productivity: 100L/Hour
Weight (KG): 20 kg
Product name: galvanized steel square water tank
Application: water supply for industry, civil, etc
Panel size: 1*1m,1*0.5m,0.5*0.5m,1.22*1.22m
Bottom case: channel steel
Technique: Ramming craft
Panel thickness: 4-17mm
Capacity: 1-3000cum
Feature: Anti-Corrosion and Anti-Aging
Service Life: More Than 20 Years
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
기본 정보
결제 및 배송 조건
Packaging Details: Water tank panel packing: Packing in wodden carton or used the tarys The accessories packing: Packing into woddern carton Assembled water tank packing: Bulk cargo or nude packing Depending on the quantity purchased custom space-saving purposes.
Supply Ability: 200 Cubic Meter/Cubic Meters per Week
제품 설명

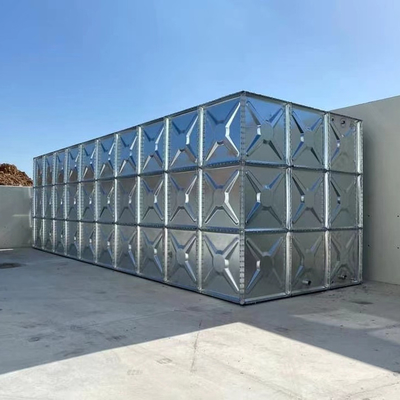

Bolted galvanized steel sheet water tank
Product Information
1. Material
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter,1 meter x 0.5 meter panel manufactured from 1.5mm to 4.0mm thickness according to requirement.

2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.

3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is
supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.

4. Accessories
1. Bolt. nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4. Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
Standard Thickness for 1.22m x 1.22m Tank Panel
Type
1.22m(h)
2.44m(h)
3.66m(h)
4.88m(h)
4th side pannels
5mm
3rd side panels
5mm
2nd side panels
5mm
1st side panels
5mm
5mm
5mm
5mm
Bottom panels
5mm
5mm
5mm
5mm
Standard Thickness for 1m x 1m Tank Panel
Type
1.0m(H)
2.0m(H)
3.0m(H)
4.0m(H)
5.0m(H)
5th side panels
5mm
4th side panels
5mm
5mm
3rd side panels
5mm
5mm
5mm
2nd side panels
5mm
5mm
5mm
5mm
1st side panels
5mm
5mm
5mm
5mm
5mm
Bottom panels
5mm
5mm
5mm
5mm
5mm
Production Process
Related Products
Company Profile

Our company

Hengshui Aoliande Trading Co., Ltd is a professional sales of FRP pipe, FRP tanks, FRP pultrusion profiles, FRP molded product and complete sets of glass fiber reinforced plastic production equipment professional company, through the professional and technical development and the introduction, the company relies on advanced technology, exquisite craft, reliable quality and perfect service, and passed the ISO9001, ISO14001, OHSAS18001 management system certification, the company existing staff more than 50 people, annual sales of glass fiber reinforced plastic series of products 6000 tons, the products have been sold to all over the world,and other countries have won the support and trust of new and old customers.
Our certificates
Our customers
Packing and Shipping
FAQ
1. Are you a trading company or a manufacture factory?
We have both trading company and manufacturer factory. Our factory is one of the biggest FRP products, FRP machines manufacturer in China.
2.Do you provide installation guidance? Yes, we can provide installation guide: installation video or installation assistance on site by our engineers. 3.How long is the delivery time? For standard water tank less than 100m3, it would be 3-5 days; For non-standard water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days. 4.What is the warranty time for your products? The warranty time of our products is 24 months, which guarantees a good after-sale service. 5.What's the guarantee, in case the water tank breaks down? The water tank has two year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts will be replaced for free if the problems are caused by quality fault.
