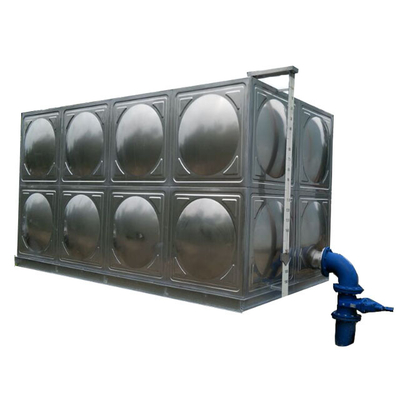

Hotels Stainless Steel Tank For 316 500 2000 Liter 5000 Gallon Water SS 304 Pressed Steel Sectional Water Tank Thailand

1 Cubic Meter
MOQ
$80.00(1 - 19 Cubic Meters) $70.00(>=20 Cubic Meters)
가격
Hotels Stainless Steel Tank For 316 500 2000 Liter 5000 Gallon Water SS 304 Pressed Steel Sectional Water Tank Thailand
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Stainless steel panel
Material: Stainless steel panel
Weight: Customized
Size: Customized
Warranty: 1 Year, 3 Years
Productivity: 50000L/Hour
Weight (KG): 2000 kg
Product name: Stainless Steel Tank for Water SS 304 316
Panel size: 1*1m,1*0.5m ,0.5*0.5m
Process technique: ramming craft
Connection way: arc argon welding
Foundation: concrete foundation and U-steel bottom base
Bottom case: channel steel
Working time: more than 30years
Panel thickness: 2.5mm-4mm
Panel grade: food grade
기본 정보
결제 및 배송 조건
Packaging Details: 1. plywood 2. iron bracket 3. naked package
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
제품 설명
Products Description

Welding Water Tank

Stainless steel grades, such as the 316 or 304 types which are generally suitable for storing both cold and heat drinking waters. There are two connection ways including bolt-connection and welding connection. For welding one, it is connected through argon welding way and it is more fast to installation completion. Both two types stainless steel water tank could meet the high precise science and technology water storing or somewhere with strict water quality demands. In addition,stainless steel welding water tank is afraid of high chloride concentration water. Welding point will reduce the nickle content and lose the ability to prevent corrosion from high chloride water.
Our Advantages

ANTI-CORROSION

The raw material adopt pure stainless steel 304 or 316; it has excellent corrosion resistance.

POTABILITY

The stainless steel material can be implanted into the human body, it is very best healthy material for us.

RELIABLE QUALITY

Our raw material are all international famous brand. Tank life-span can be over 1/4 century.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

SAVE SPACE

For argon arc welding type, all the welding process are handle from inside the tank, so there’s no need left space around of tank.
Details Images
ACCESSORY NAME
OPTIONAL MATERIAL
Bolts & Nuts
Hot dipped galvanized
Stainless steel 304/316

Skid Base
Hot dipped galvanized
Painting

Internal Structure
Hot dipped galvanized
Stainless steel 304/316

Water Indicator
Glass with brass valve
Float type

Sealing Rubber
Food grade white color EPDM
Silicon

Flanges
Hot dipped galvanized
Stainless steel 304/316
PVC
PHYSICAL PROPERTIES
STANDARD REQUIREMENT
RESULT
Tensile strength
≥515 MPa
695 MPa
Yield strength
≥205 MPa
309 MPa
Elongation
≥40%
54%
Hardness
≤92HRBS
85HRBS
TANK HEIGHT (mm)
THICKNESS OF EACH PANEL
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
2.5mm
1.5mm
/
/
/
/
1.5mm
1500
2.5mm
1.5mm
1.5mm
/
/
/

2000
2.5mm
2mm
1.5mm
/
/
/

2500
3mm
2.5mm
2mm
1.5mm
/
/

3000
3mm
2.5mm
2mm
1.5mm
/
/

3500
3mm
2.5mm
2.5mm
2mm
1.5mm
/

4000
3mm
2.5mm
2.5mm
2mm
1.5mm
/

4500
4mm
3mm
3mm
2.5mm
2mm
1.5mm

5000
4mm
3mm
3mm
2.5mm
2mm
1.5mm

The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Company Profile
Why Choose Us
Product packaging
FAQ

Q: Are you trading company or manufacture?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
