Custom water storage water storage tank for frp grp metal galvanized stainless steel fiberglass fiberglass to plastic reinforce

1 Cubic Meter
MOQ
$200.00(1 - 9 Cubic Meters) $150.00(10 - 19 Cubic Meters) $100.00(20 - 29 Cubic Meters) $50.00(>=30 Cubic Meters)
가격
Custom water storage water storage tank for frp grp metal galvanized stainless steel fiberglass fiberglass to plastic reinforce
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Max Working Pressure(MPa): 0.1 MPa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: panel
Capacity: customized
Dimension(L*W*H): customzied
Weight: 2000
Warranty: 1 Year
Key Selling Points: Long Service Life
Showroom Location: None
Product name: FRP GRP Rain Water Storage Tank
Application: Water storage
Name: water tank
Material: SMC FRP GRP Stainless steel galvanized
Panel grade: food grade
panel thickness: 4mm-18mm
panel size: 1*1m, 1*0.5m, 0.5*0.5m
Volume: 0.125~5000CBM
Shape: Square Modular
Function: Water Treatment Systerm
기본 정보
결제 및 배송 조건
Packaging Details: Plywood, size: 2000x1000x1000 plywood case,lron cage
Supply Ability: 1000 Piece/Pieces per Day
제품 설명
Products Description

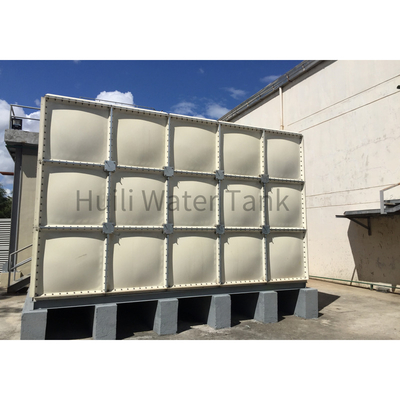

GRP WATER TANK

GRP water tanks is the abbreviation of Fiberglass Reinforced Plastic water tanks,are leading industry and civil standard water storage equipment on the market.There are many advantages such as lightweight,strong structure,modular and sectional assembly by standard panels design. GRP tanks provide safe environment with no risk of bacteria corrosion.

Furthermore,Due to the raw material to manufacturing water tank is self-resistant to bad weather and high temperature,meaning the water tank lifespan is long.Meanwhile,all raw materials attribution decides the water tank is pliable,application wide for any specific access or needs.
Our Advantages

COST-EFFECTIVE

FRP/GRP is a kind of high-technological reinforced plastic. It has low cost and high performance, is a perfect substitute of metal tank.

RELIABLE QUALITY

Our FRP/GRP’s raw material are all international famous brand. The life-span can be over 1/4 century.

DIMENSION FLEXIBILITY

The size of panel can be 1*1 m,1*0.5 m and 0.5*0.5 m, which can assembled kinds of volume from 0.125m³ to 5000m³. That’s extremely convenient to select for you.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.

POTABILITY

FRP/GRP material has passed local Water Quality Inspection testing. Test result shows our FRP/GRP are suitable for potable water reserve. Roof panel adopt upward bulge to prevent rainwater remain on the top. Further prevent mosquito breeding and dirty water permeate inside the tank.
Details Images
ACCESSORY NAME
OPTIONAL MATERIAL
Bolts & Nuts
Hot dipped galvanized
Stainless steel 304/316

Skid Base
Hot dipped galvanized
Painting

Internal Structure
Hot dipped galvanized
Stainless steel 304/316

Water Indicator
Glass with brass valve
Float type

Sealing Rubber
Food grade white color EPDM
Silicon

Flanges
Hot dipped galvanized
Stainless steel 304/316
PVC

PANELS SIZE & WEIGHT

1.The size of FRP/GRP panel are produced by standard mould, having size 1*1m,1*0.5m and 0.5*0.5m;
2.The panel thickness is depends on tank height;
3.The available highest height is 5 meters (Add external C channel or I-beam reinforcement for 4m and 5m height).
SIZE OF PANEL
WEIGHT OF EACH PANEL
1*1m
5#
8#
10#
12#
14#
16#
18#
20#
22#
1*1m
12kg
17.5kg
21kg
25kg
29kg
33kg
37kg
41kg
44kg
1*0.5m
7kg
9kg
11kg
13kg
15kg
17kg
19kg
21kg
23kg
0.5*0.5m
4.5kg
4.8kg
5.8kg
6.7kg
7.5kg
8.5kg
9.5kg
/
/
TANK HEIGHT (mm)
THICKNESS OF EACH PANEL
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
10#
10#
/
/
/
/
5#
1500
10#
10#
8#
/
/
/

2000
12#
10#
8#
/
/
/

2500
12#
12#
10#
8#
/
/

3000
14#
12#
12#
8#
/
/

3500
16#
14#
12#
10#
8#
/

4000
18#
18#
14#
12#
10#
/

4500
20#
18#
14#
12#
10#
8#

5000
22#
20#
16#
12#
10#
8#

Company Profile
Why Choose Us
Product packaging
FAQ

Q: Are you trading company or manufacture?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
